Authentication & Session Management

The OffloadSecurity CSPM platform implements an enterprise-grade authentication and session management system designed for high security and resilience. It features PBKDF2-based password hashing, multi-tier session persistence, and a challenge-response MFA flow.

1. Authentication Flow & Security​

The AuthService manages the core identity lifecycle. It utilizes secure hashing and timing-safe practices to protect against common authentication attacks.

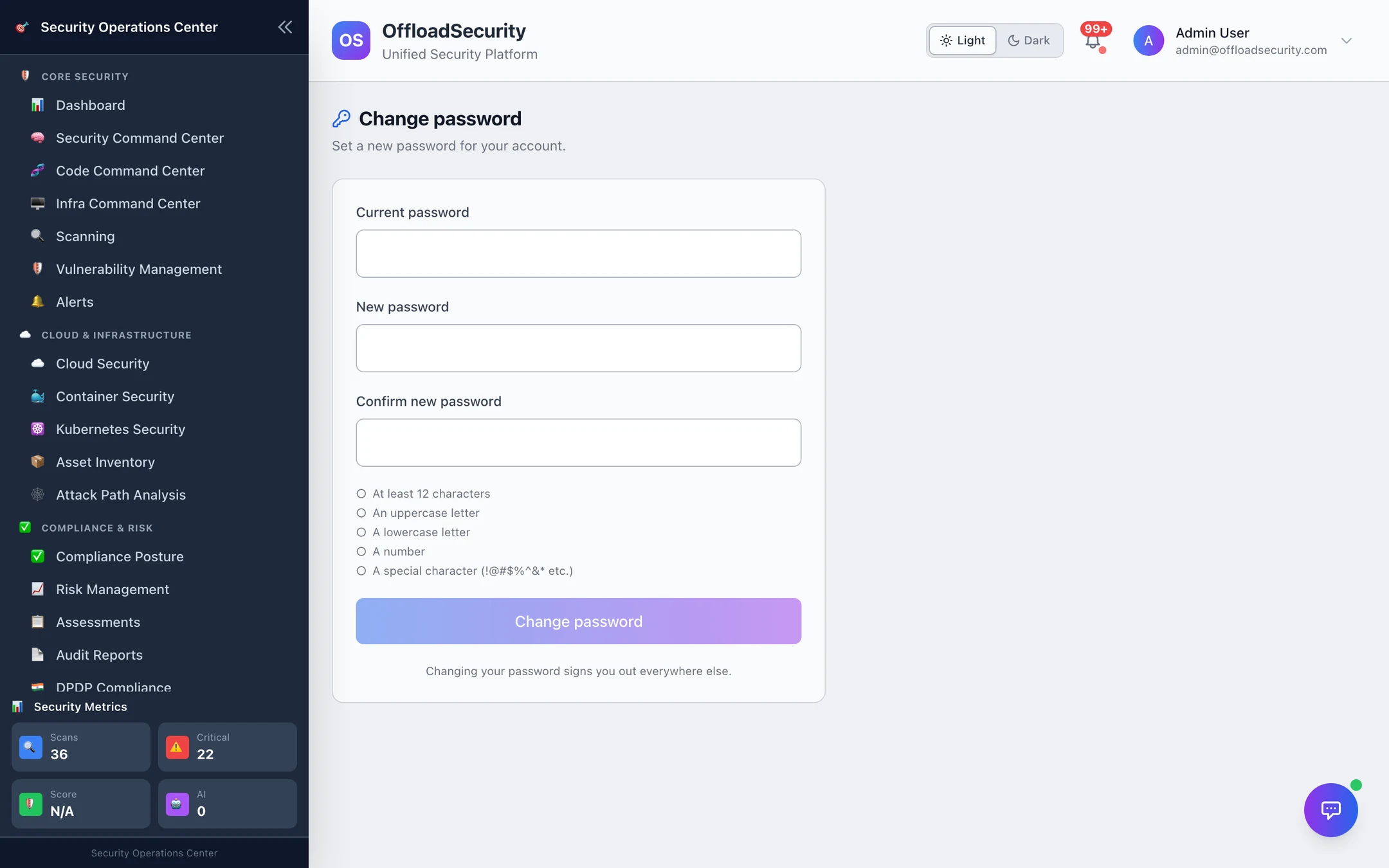

1.1. Password Hashing (PBKDF2)​

Passwords are never stored in plaintext. The system uses PBKDF2-SHA256 for hashing.

  • Iteration Count: Modern hashes use 600,000 iterations to meet OWASP recommendations.
  • Backward Compatibility: The system supports legacy 100,000 iteration hashes by encoding the iteration count within the salt string (format: {iterations}${hex_salt}).
  • Salt Generation: A unique 16-byte hex salt is generated for every user using secrets.token_hex(16).

1.2. Login Protection Mechanisms​

  • Brute-Force Lockout: Accounts are locked after 5 failed attempts. The lockout duration is 15 minutes (900 seconds).
  • Email Enumeration Protection: To prevent timing attacks that reveal if an email exists, the system uses a pre-computed dummy hash (_TIMING_PAD_HASH). If a user is not found, the system still performs a PBKDF2 verification against this dummy hash so that response times remain consistent.

1.3. Identity Logic​

Users are represented by the User class and assigned one of several roles: ADMIN, SECURITY_MANAGER, SECURITY_ANALYST, COMPLIANCE_OFFICER, AUDITOR, or VIEWER. These roles map to granular permissions calculated in _get_permissions.

2. Session Management & Storage​

The platform employs a multi-tier SessionStorage architecture to ensure sessions survive server restarts and remain performant.

2.1. Multi-Tier Storage Strategy​

The SessionStorage class attempts to initialize backends in the following order of priority:

  1. Redis: Primary high-performance store with native TTL support.
  2. MongoDB: Persistent fallback. Sessions are stored in the sessions collection with a TTL index on expires_at.
  3. In-Memory: Last resort fallback if both Redis and MongoDB are unreachable.

2.2. Session Security & Hashing​

To prevent session hijacking via database or memory dumps, session IDs (generated as secrets.token_urlsafe(32)) are hashed using SHA-256 before storage. The create_session method automatically hashes the raw ID before persistence.

2.3. Session Validation & Retrieval​

The get_current_user dependency validates credentials in order:

  1. Authorization: Bearer {token} header.
  2. X-Session-ID header for frontend compatibility.
  3. ?token= query parameter, accepted only on SSE endpoints to prevent leakage in access logs.

Code Entity Mapping: Authentication & Session Data Flow​

Title: "Auth & Session Data Flow"

graph TD
    subgraph "Frontend_Layer"
        ApiSvc["useAuth"]
        LoginComp["handleLogin"]
    end

    subgraph "Backend_API_Layer"
        AuthStd["get_current_user"]
        AuthSvc["AuthService"]
    end

    subgraph "Storage_Layer"
        SessionSvc["SessionStorage"]
        DB[("MongoDB: sessions_collection")]
        Redis[("Redis: Session_Cache")]
    end

    LoginComp -- "POST /auth/login" --> AuthSvc
    ApiSvc -- "Authorization: Bearer" --> AuthStd
    AuthStd -- "auth_service.get_user_from_session()" --> AuthSvc
    AuthSvc -- "session_storage.get_session()" --> SessionSvc
    SessionSvc -- "GET" --> Redis
    SessionSvc -- "find_one" --> DB

    AuthSvc -- "session_storage.create_session()" --> SessionSvc
    SessionSvc -- "SETEX" --> Redis
    SessionSvc -- "insert_one" --> DB

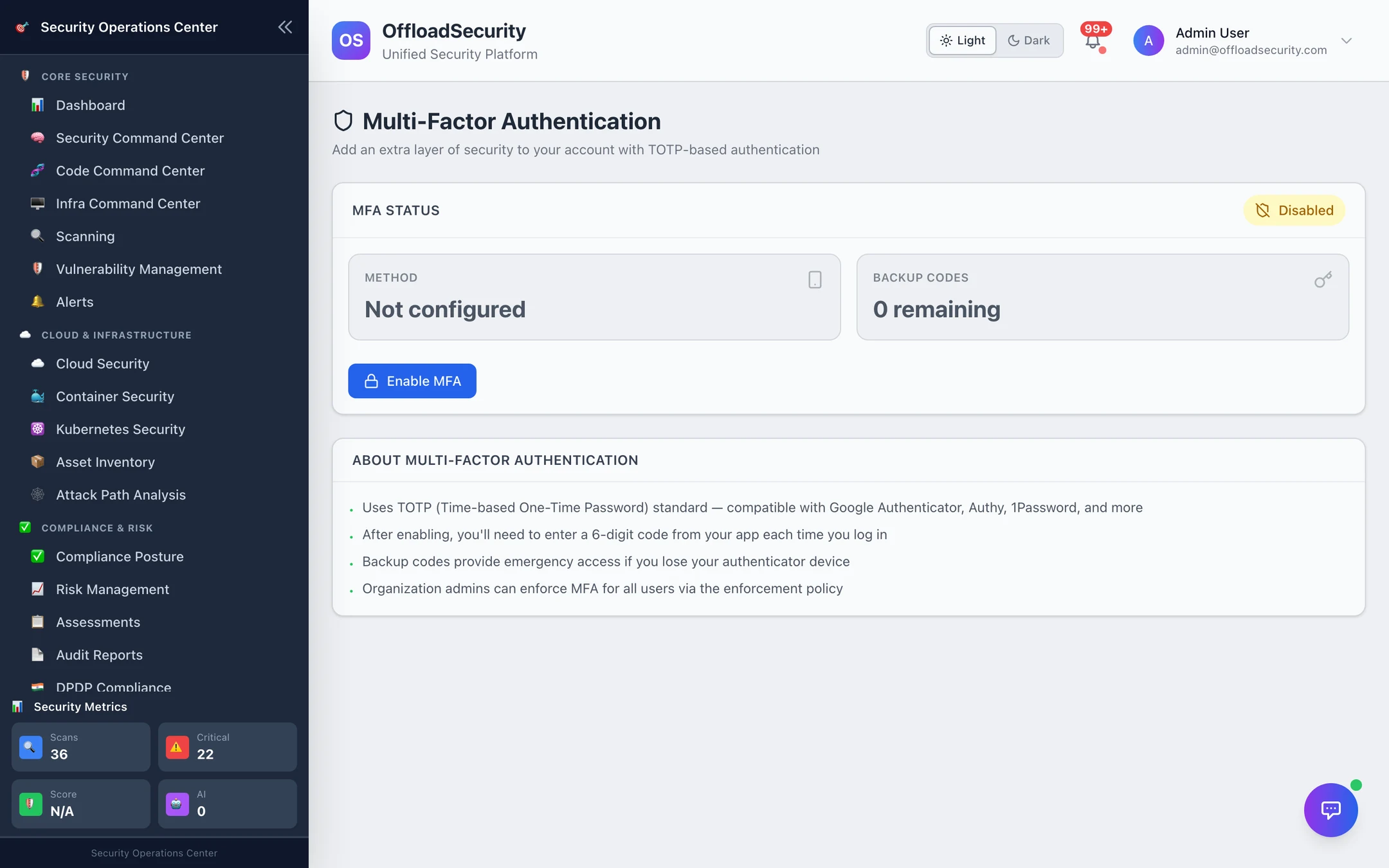

3. MFA TOTP Challenge-Token Flow​

The Multi-Factor Authentication (MFA) system uses a challenge-token flow to decouple the initial password check from the second-factor verification.

3.1. The MFA Challenge​

When a user with MFA enabled logs in, the AuthService does not return a full session immediately. Instead, it returns an mfa_required: true flag and a temporary mfa_token challenge string.

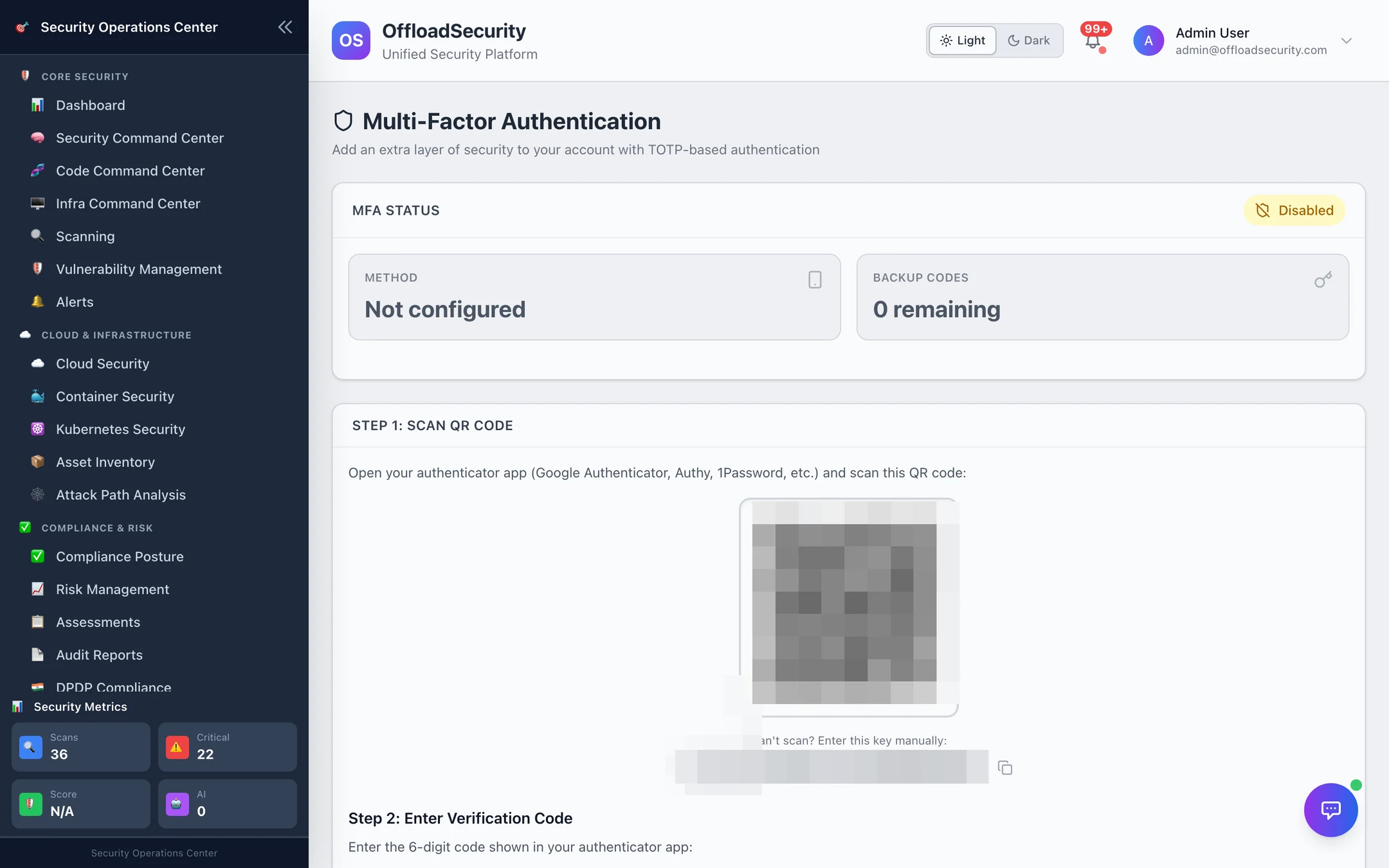

3.2. Verification Flow​

  1. Setup: User calls /api/auth/mfa/setup to receive a TOTP secret and QR code.
  2. Enable: User provides a 6-digit code to /api/auth/mfa/enable. Success triggers the generation of backup codes.
  3. Verify: During login, the user submits the mfa_token and the TOTP code to /api/auth/mfa/verify.

Code Entity Mapping: MFA Verification Flow​

Title: "MFA Challenge-Response Sequence"

sequenceDiagram
    participant U as "User (Client)"
    participant R as "MFA Routes"
    participant M as "MFA Service"
    participant S as "Session Storage"

    U->>R: "POST /login (email, password)"
    R->>M: "get_mfa_status(user_id)"
    M-->>R: "enabled=true"
    R->>S: "create_session(mfa_token, temp_data)"
    R-->>U: "200 OK (mfa_required=true, mfa_token)"

    U->>R: "POST /mfa/verify (mfa_token, code)"
    R->>M: "verify_totp(user_id, code)"
    M-->>R: "valid=true"
    R->>S: "create_session(user_id, session_data)"
    R-->>U: "200 OK (session_id, user)"

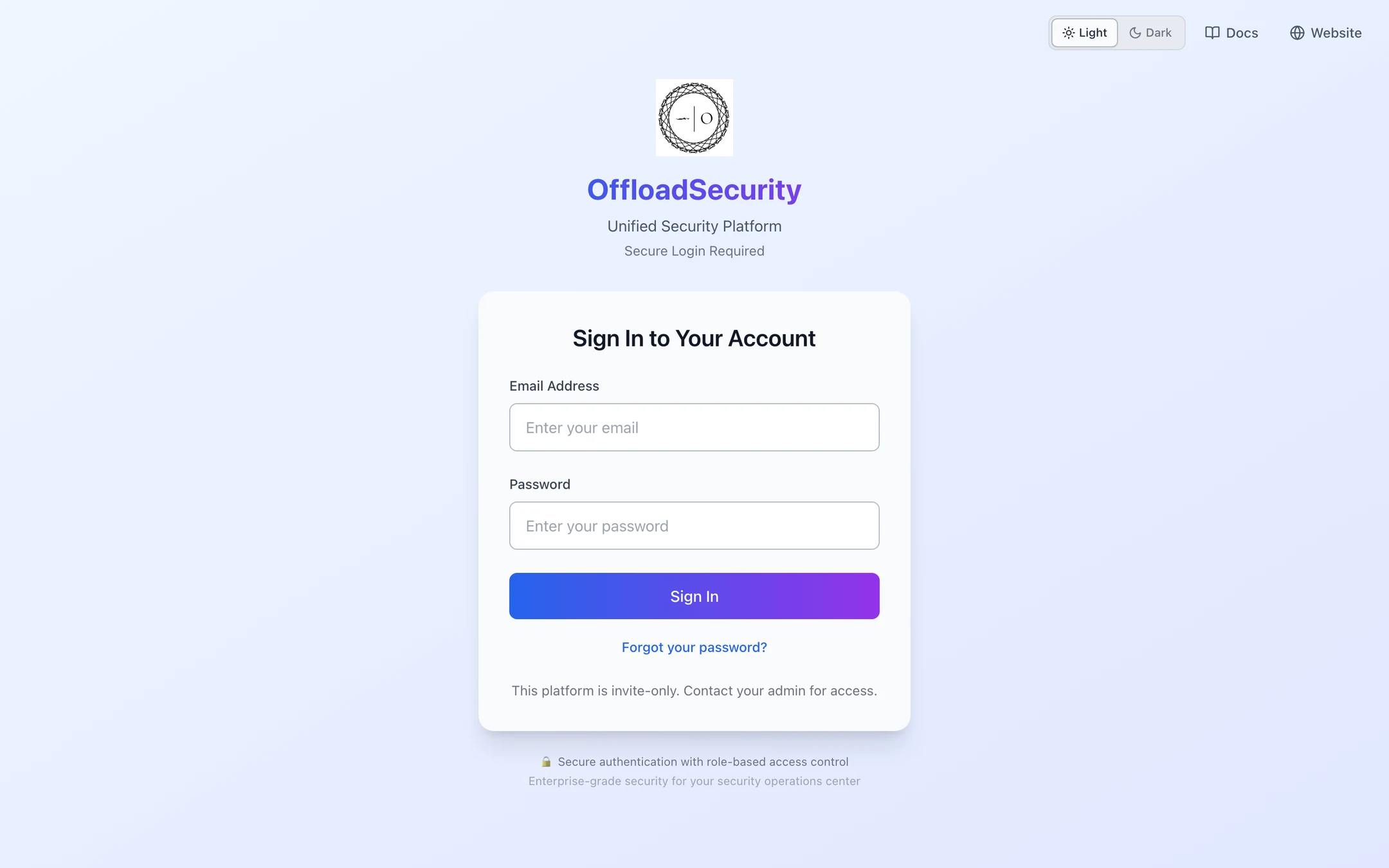

4. Registration & Invitation System​

OffloadSecurity is designed as an invite-only platform. Registration is managed through an invitation-based flow to ensure auditable access control.

4.1. Invitation Lifecycle​

Users can only register if they possess a valid invitation token.

  • Registration Flow: The registration component extracts the invitation_token from URL parameters.
  • Validation: Registration requires matching the email address to which the invitation was originally sent.
  • Blocked Access: If no token is present, the frontend displays an "Invite Only" blocked message.

4.2. Bootstrap & Setup Mode​

For fresh installations, the platform includes a ProtectedRoute logic that detects if the initial setup is complete.

  • Setup Redirect: If /api/setup/status returns setup_complete: false, users are redirected to the /setup route to create the first admin account.

4.3. Audit Trail & Webhook Integration​

Every authentication event is captured by the AuditTrailMiddleware. Actions like user.login and mfa.enable are classified and stored in an immutable log. Furthermore, the WebhookEventBus can push these events (e.g., user.login) to external SIEM/SOAR systems.
